For LM270QQ1 LM270QQ2 Screen 5K Driver Controller Board HDMI+DP+USB+TY

For LM270QQ1 LM270QQ2 Screen 5K Driver Controller Board HDMI+DP+USB+TYPEC EDP 60-Pin 5120x2880 QQHD 27' LCD Display DIY Kit(LM270QQ1(SD)(D1))

$61.04 $167.48

Before make the order, please make sure your screen model is exactly the same as the one listed. And the screen itself can be opened and displayed normally. This is very important. We will install firmware programs based on your screen model. You can find the model label on the back of the screen. As shown in the reference photo below.
LM270QQ1 has a 12 pin backlight, while LM270QQ2 has a 6-pin backlight. Please pay attention to distinguishing.
Product Description:
This controller board is only compatible with EDP 60 pin (8 Lanes) 60Hz screen.
Input Power Adapter: DC 12V More than 5A
Input: HDMI, DP, TYPE-C 3.0
Output: Earphone, USB
Language: Chinese, English, Korean, Spanish, Japanese, French

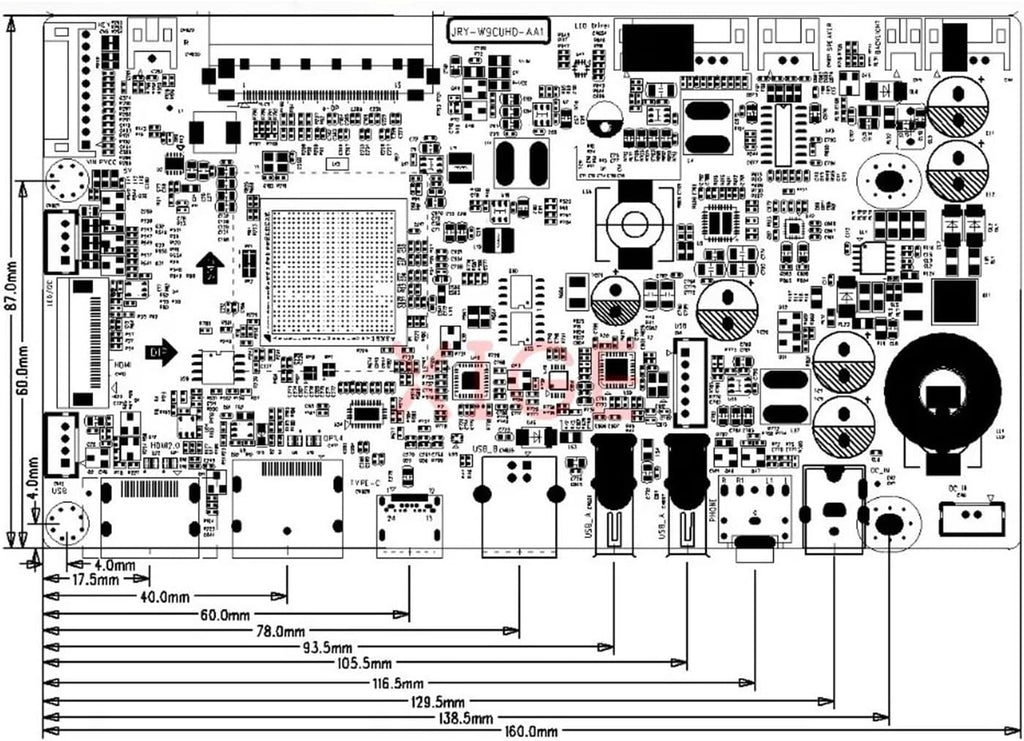

Board Size: 160mm x 87mm
Packaging List:

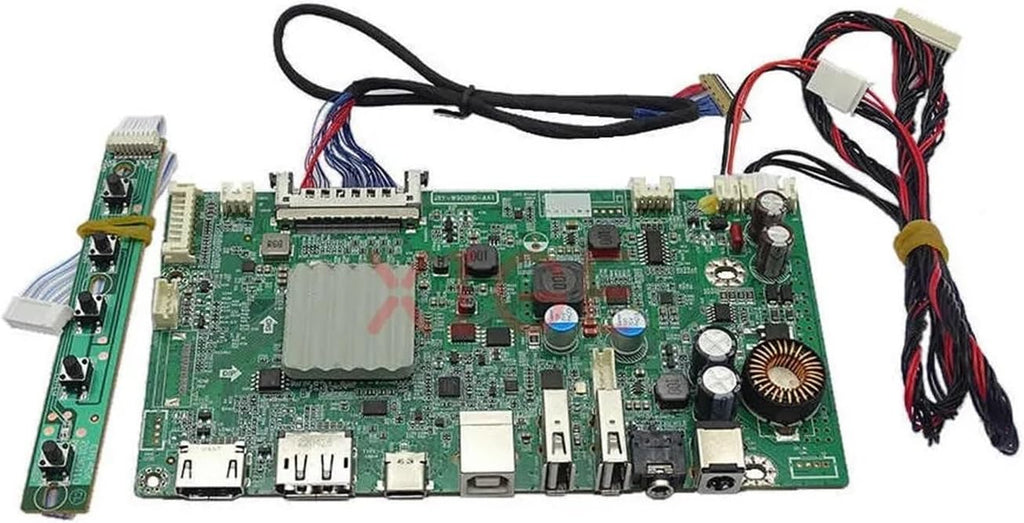

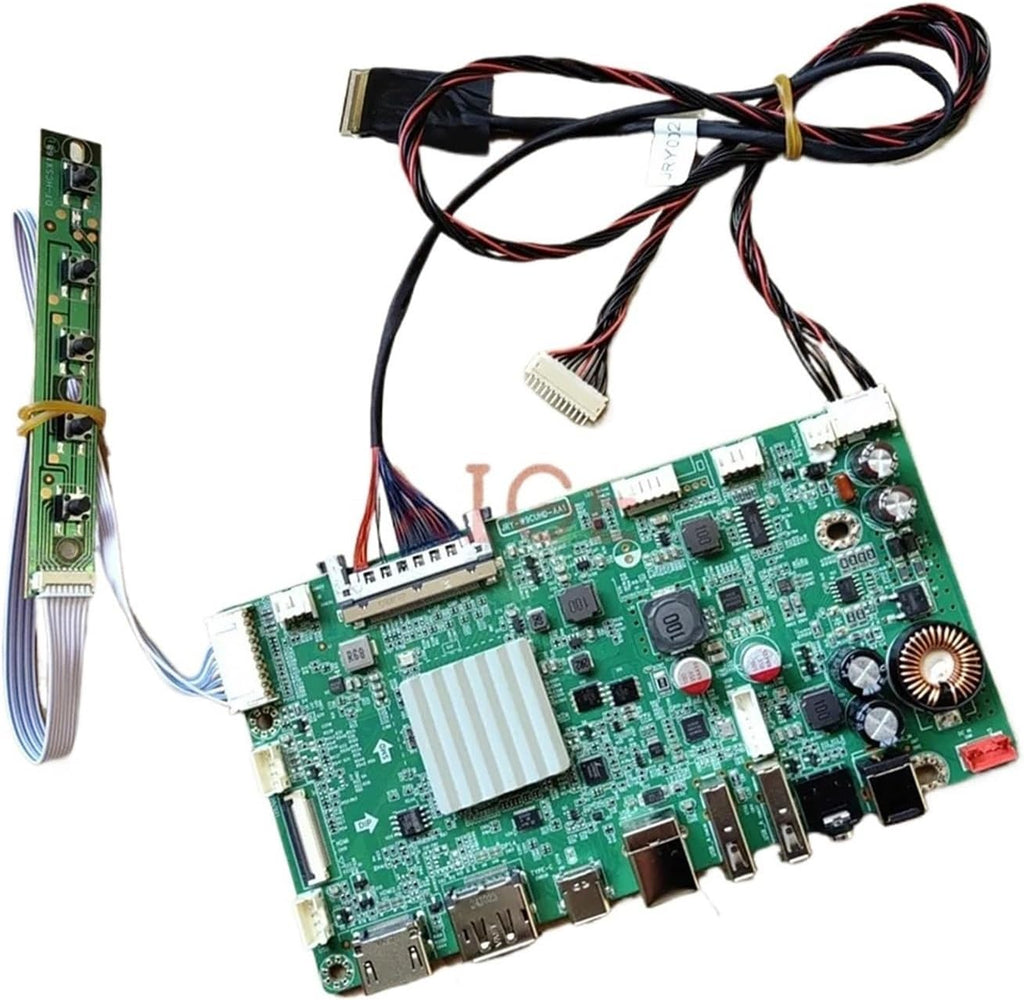

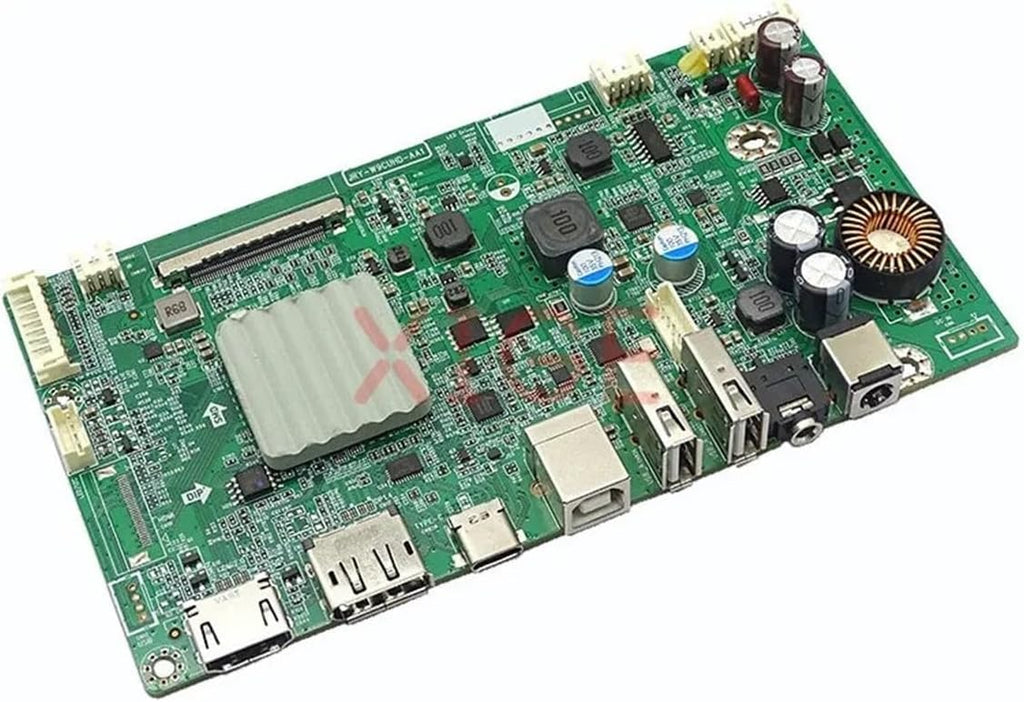

1Pcs x Controller motherboard
1Pcs x EDP signal cable
1Pcs x Backlight cable
1Pcs x Keypad with cable

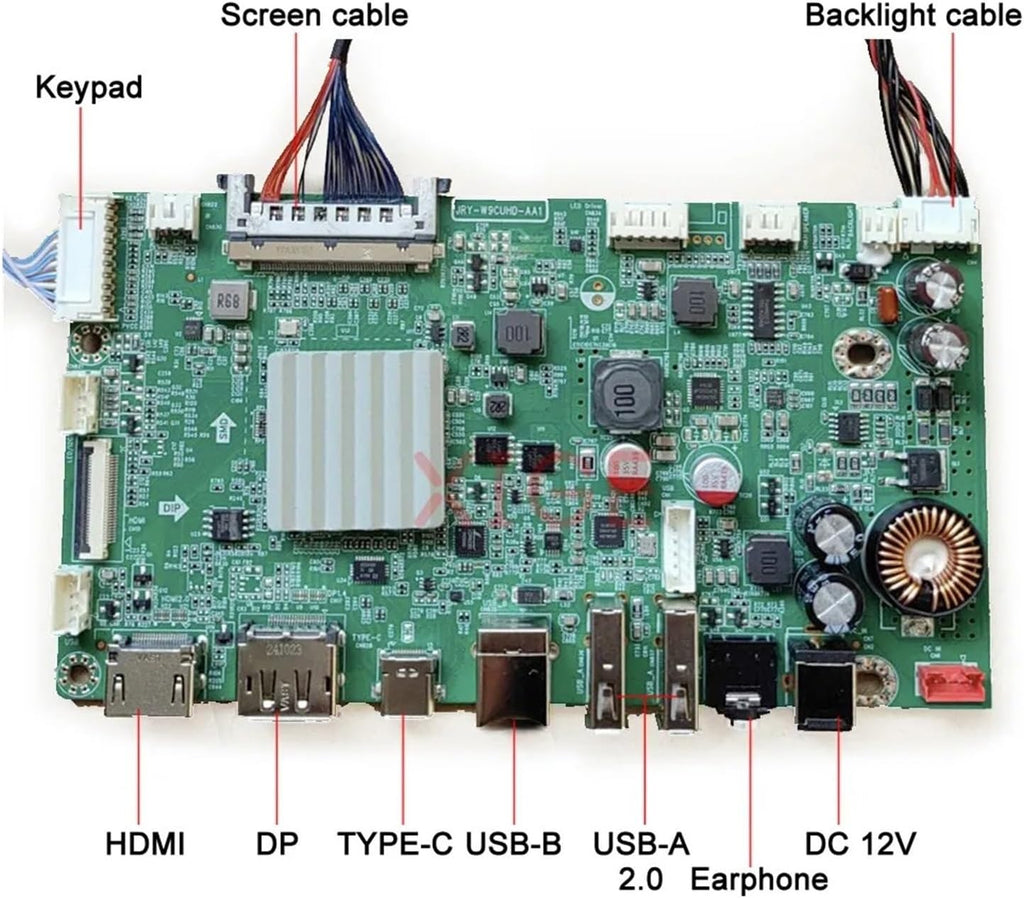

We will connect all the cables on the controller board. After receiving the package, you only need to correctly connect the backlight cable and screen cable to your screen. Then connect the HDMI or DP or TYPE-C signal cable and power supply.
Please note: The red backlight cable is the positive pole and cannot be connected in reverse, otherwise the screen will not display.
*When the controller board does not detect the correct signal source input, it will automatically enter standby mode.
If you have any questions, please contact us first to help you. Thank you.
==========
Part Number : 5K_V4
Origin : Mainland China
Certification : RoHS
Supported Screen Size : 27 inch
Supported Signal Ports : EDP 60 Pin
Supported Resolution : 5120x2880 60Hz
